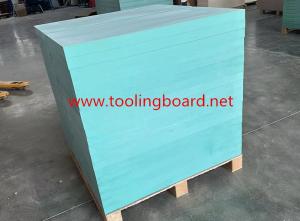

ZK700 high temp epoxy tooling board for vacuum forming molds, temp resistance up to 150°C

Name: ZK700 high temp epoxy tooling board for vacuum forming molds temp resistance up to 150C
Brand: ZK-Tool®
Price: 1 USD

China ZK700 high temp epoxy tooling board for vacuum forming molds, temp resistance up to 150°C factory

Brand Name : ZK-Tool®

Model Number : ZK700

Certification : Refer to sample

Place of Origin : China

MOQ : 10 sheets

Price : negotiationable

Payment Terms : T/T

Supply Ability : >50m³ /month

Delivery Time : 7 days after receipt the deposit

Packaging Details : Standard export packing

Compressive Strength : ≥55 MPa

Material : Epoxy Tooling Board

Cnc Machinable : Easily processing

Surface Finish : Smooth

Density : 0.7 g/cm3

Hardness : Shore D 73-78

Color : Brown,Blue,Green

Application : High temperature lay-up tools,vacuum forming molds

Contact Now

ZK700 is a high temp epoxy tooling Board for vacuum forming molds, temp resistance up to 150°C.It is a good choice for use in high temperature lay-up tools and parts,carbon fiber moulds,vacuum forming molds,thermoforming,metal stamping,checking fixtures and jigs.

If you are using modeling and tooling board RENSHAPE 5060 NECURON 690 702,OBO 750 850,RAMPF WB 0691, SIKA LAB 973, our work board ZK700 is also your ideal alternative to them. The price of ZK700 is much lower than them. We have a lot of ZK700 stock ready for ship.

Model NO.	ZK700
Color	brown,blue,green
Density(g/cm3)	0.7
Hardness(Shore D)	73-78
Coefficient of thermal expansion(10-6 K-1)	35-45
Thermal variant temperature(°C)	140-150
Compressive strength(N/mm²)	50-55
Flexural strength(N/mm²)	35-40
Tensile strength(N/mm²)	25-30
Key Properties	1. Very fine surface structure
	2. High temperature resistant,up to150℃
	3. Excellent dimension stability
Applications	1. Master and copy models
	2. Vacuum forming molds
	3. Lay-up tools for prepreg,carbon fiber molds
Dimension(mm)	750 x 500 x(50/75/100)
Dimension(mm)	1500 x 500 x(50/75/100) bigger size can be customized
